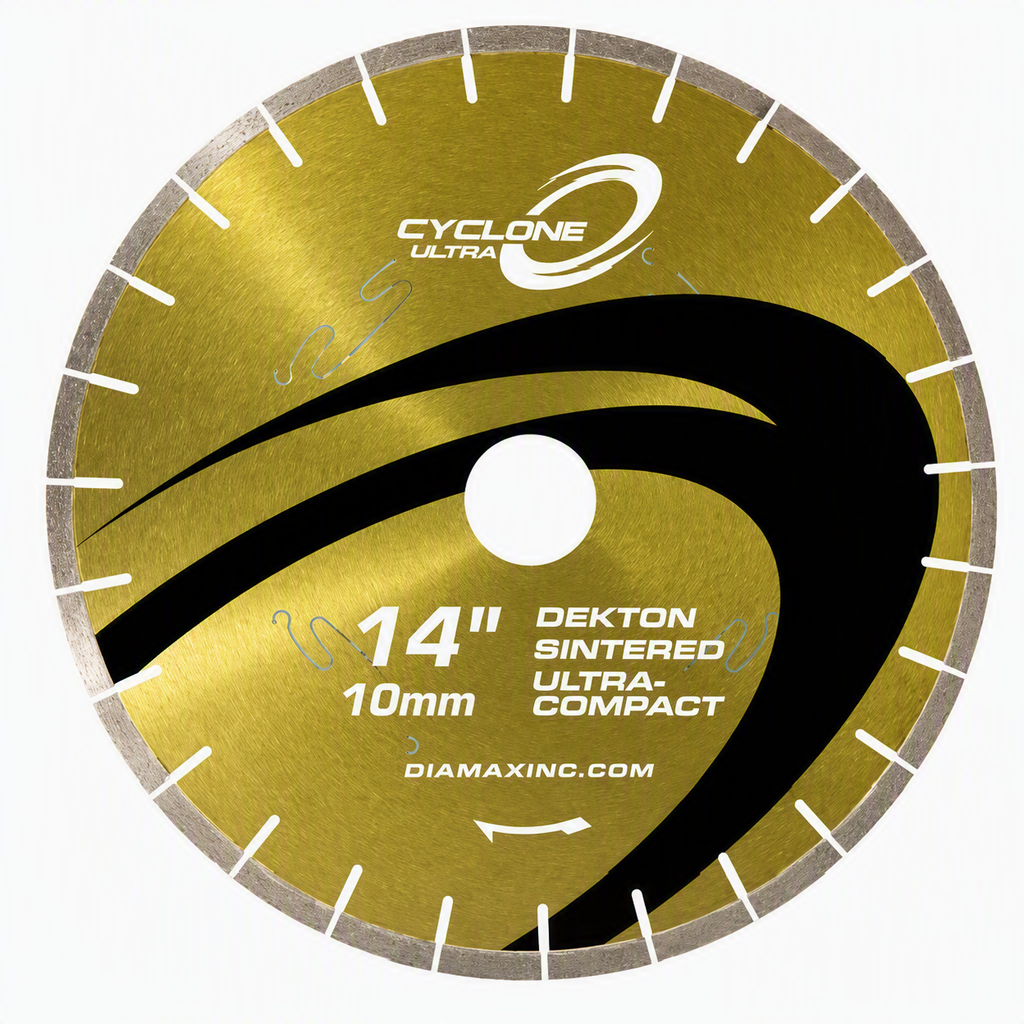

Diamax Cyclone Ultra Dekton Blade
Premium bridge saw blade designed for Dekton®, sintered stone, ultra-compact surfaces, quartz, marble, and quartzite, delivering fast cutting speeds, clean finishes, and exceptional blade life.
Description
The Cyclone Ultra Bridge Saw Blade is engineered for fabricators cutting Dekton®, Neolith®, Techlam®, Laminam®, Lapitec®, quartz, marble, quartzite, and other ultra-compact surfaces. Featuring precision diamond bonding and factory dressing, this blade delivers fast cutting speeds, reduced load on equipment, and excellent edge quality on both straight and miter cuts.
Built with a silent steel core, the Cyclone Ultra reduces noise while improving cutting efficiency. Its advanced bond technology minimizes dressing requirements and maintains consistent performance throughout the life of the blade, making it an excellent choice for high-production fabrication shops.
Applications
- Dekton®
- Neolith®
- Techlam®
- Laminam®
- Lapitec®
- Ultra-Compact Surfaces (UCS)
- Quartz
- Marble
- Quartzite
Features
- Excellent finish for straight and miter cuts
- Silent steel core for reduced noise and improved cutting efficiency
- Precision factory dressing and diamond bonding
- Minimal dressing and maintenance required
- Fast cutting speeds with clean edges
- Standard Donatoni® and Denver® pin holes
- Designed for high-production fabrication environments
Specifications
| Item # | Size | Arbor | Max RPM | Segment Height | Straight Feed Rate | Miter Feed Rate |
|---|---|---|---|---|---|---|
| CUCS14 | 14" | 60 / 50 mm | 2,000 | 10 mm | 35" - 70" / min | 12" - 30" / min |
| CUCS16 | 16" | 60 / 50 mm | 2,000 | 10 mm | 35" - 70" / min | 12" - 30" / min |
| CUCS18 | 18" | 60 / 50 mm | 2,000 | 10 mm | 35" - 70" / min | 12" - 30" / min |
